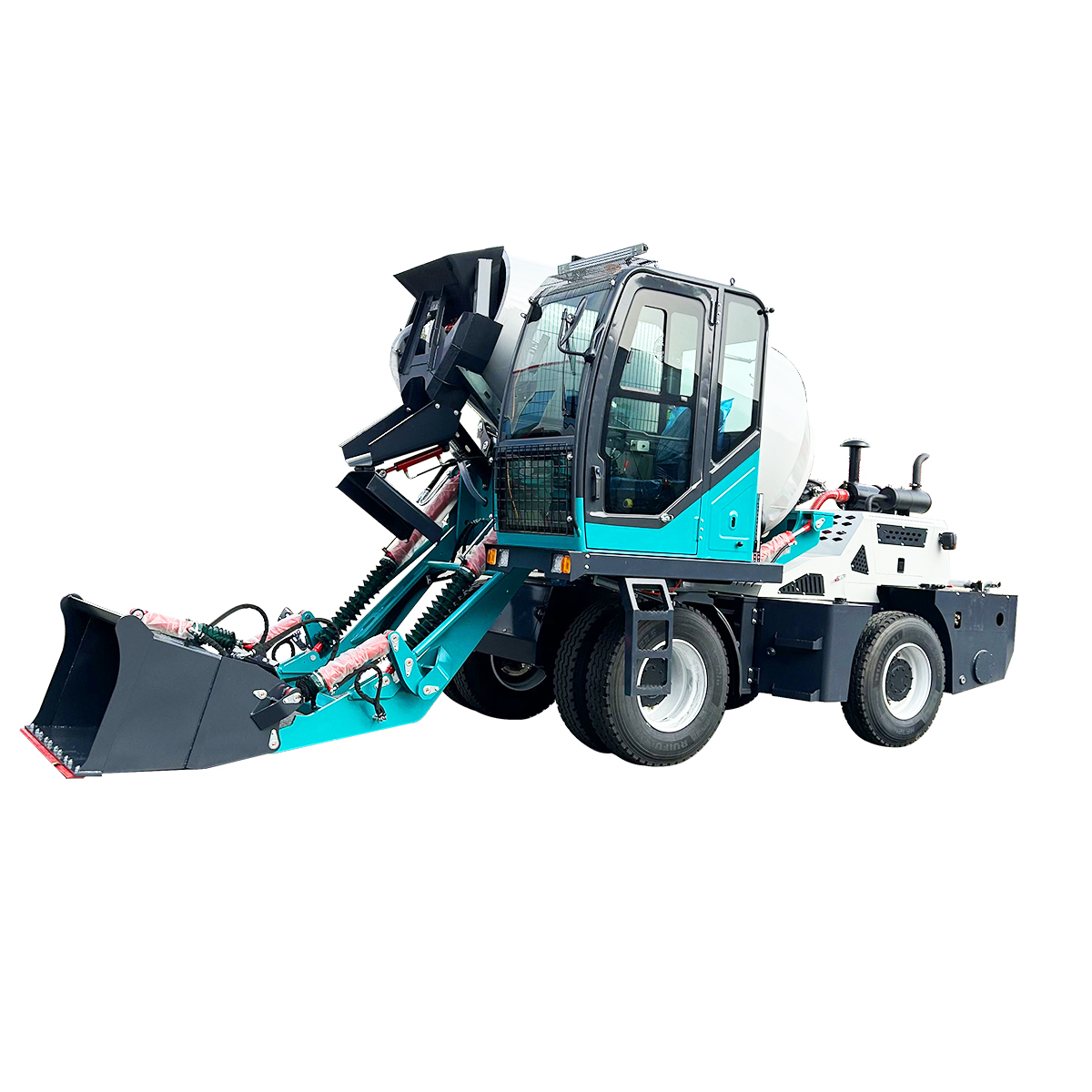

The Self Loading Concrete Mixer Truck is an advanced all-in-one construction machine that combines loading, weighing, mixing, transporting, and discharging functions into one unit. It can automatically load raw materials, mix concrete on-site, and deliver fresh concrete directly to the job location. Only one operator is required to complete the full process, helping contractors save labor cost and improve work efficiency.
Compared with traditional concrete batching plants or mixer transport trucks, this mobile concrete mixer truck is more flexible, cost-effective, and ideal for small to medium construction projects, rural infrastructure, road repair, housing construction, and remote job sites.
Product Description
The self loading concrete mixer truck serves as an all-in-one solution combining material loading, weighing, mixing, and transporting. It is designed for construction businesses requiring onsite fresh concrete without separate batching plants. This machine supports small to medium projects where flexibility and reduced labor input are priorities. Its operational model aligns with buyers focusing on efficient resource allocation in rural, urban, and remote site applications.
Equipped with a diesel engine producing 85 kW power, the truck features a hydraulic system for automatic loading and a four-wheel 4x4 drive chassis for off-road performance. The rotating drum with a 5.7 m³ capacity has a 360-degree discharge capability, providing operational adaptability in limited spaces. Specifications such as a maximum loading weight of 9600 kg and an automatic water supply demonstrate practical design considerations for reliable concrete mixing and transport.
This mixer truck is suitable for various construction environments, including road maintenance, bridge projects, agricultural foundations, and housing construction, especially where batching plants are unavailable. Its mobility on rough terrain and integrated mixing functionality reduce the need for multiple machines. Procurement entities can evaluate this equipment as a cost-effective option that consolidates several concrete production steps into a single unit for improved site logistics.
The integration of loading, weighing, mixing, and transport reduces the requirement for multiple separate machines, simplifying procurement and maintenance processes. The 4x4 driving system enhances site versatility, while available capacity options allow buyers to select models that fit specific project sizes. These factors support streamlined sourcing decisions for organizations focusing on compact and multifunctional construction machinery.
The one-operator system lowers labor costs, suitable for businesses with limited operational staff. Quality control features like the integrated weighing system help maintain concrete consistency. OEM and ODM customization possibilities may be considered for buyers seeking tailored configurations. The product’s packaging and delivery are aligned with typical engineering machinery shipments, facilitating integration into commercial construction fleets.
| Stats | parameter |
| Actual output volume | 3.5 |
| Mixing tank capacity | 5.7 |
| Angle of inclination | 16 |
| Rotational speed | 18 |
| Direction of rotation | Feed: clockwise Discharge: counterclockwise |
| Slump of concrete | 70-260 |
| Hydraulic transmission system | Hydraulic transmission system |
| Oil pump model | JHP2050 JHP2063 |
| Motor type | BMZ-250 |
| Reducer speed ratio | 1:30 |
| Chassis engine main performance parameters | Chassis engine main performance parameters |
| Engine type | YCD4J22T-115 |
| displacement | 4.33 |
| Rated power | 85 |
| Maximum torque | 1500-2100 |
| Maximum travel speed | 30 |
| Minimum turning radius | 3500 |
| Climbing ability | 26 |
| tyre | 1670R22.5 |
| Driving form | four-wheel drive |
| Maximum loading weight | 9600 |
| wheelbase | 2600 |
| Bucket capacity | 0.5 |
| Water supply system | Automatic filling |
| Tank capacity/water supply form | 650 |
| Vehicle equipped weight | 8200 |
| Overall dimensions (L x W x H) | 5600×2400×2850 |
 |
 |
 |
 |
| Dashcam footage ensures a clear, unobstructed view with no blind spots, | A simple and comfortable control panel for more efficient operation | High-torque hydraulic motor: Smooth, jam-free mixing even during prolonged operation | A high-performance hydraulic system ensures smooth operation of the machinery |
House Building Projects
Residential construction, villas, and private housing.
Road Construction & Repair
Rural roads, highways, sidewalks, and bridge repairs.
Farm & Agricultural Projects
Barns, storage buildings, irrigation foundations.
Remote Construction Sites
Mountain areas, villages, islands, undeveloped areas.
Government Infrastructure Projects
Schools, hospitals, drainage systems, public works.
Small & Medium Contractors
Perfect for contractors who need flexible concrete production.
✅ 8+ Years Factory
✅ Export 80+ Countries
✅ Spare Parts Support
✅ Fast Delivery
✅ OEM Customization
✅ 24/7 Service
Q: What is a self loading concrete mixer truck?
A: It is an all-in-one machine that combines loading, mixing, transporting, and unloading concrete in one unit.
Q: How many workers are needed to operate it?
A: Normally only one skilled operator is required.
Q: Is it suitable for rough roads and remote areas?
A: Yes, the 4x4 drive system makes it ideal for off-road and remote construction sites.
Q: What capacity models are available?
A: We offer 1.5m³, 2.0m³, 2.5m³,3.0m³ 3.5m³ ,4.0m³ and 4.5m³ models.
Q: Why choose a self loading mixer instead of a batching plant?
A: It is more flexible, lower cost, easier to move, and ideal for small to medium projects.
