Name: Self Loading Concrete Mixer Truck | Mobile Concrete Mixing Machine for Construction Projects
Brand: Qingdao Telstone Trading Co., Ltd.
SKU: 1.5m³

Self Loading Concrete Mixer Truck | Mobile Concrete Mixing Machine for Construction Projects

No.1.5m³

The self-loading concrete mixer truck is a multifunctional construction machine that integrates loading, weighing, mixing, transport, and unloading into a single unit. The equipment can automatically load raw materials, produce fresh concrete on-site, and transport it directly to the construction area. The entire process requires only one operator, significantly reducing labor costs and improving construction efficiency.

Compared to traditional batching plants or standalone mixer trucks, this equipment offers greater flexibility, cost-effectiveness, and ease of operation. It is widely used in small-to-medium-sized projects, road repairs, housing construction, rural infrastructure development, and remote construction sites. The equipment automatically loads raw materials, produces fresh concrete on-site, and transports it directly to the construction area. A single operator can complete the entire process, significantly reducing labor costs and improving construction efficiency. As a compact machine, it features low investment and high returns, and is easy to transport.
It is an excellent choice for construction contractors and small-scale construction companies.

The Self Loading Concrete Mixer Truck is a highly efficient and intelligent construction machine designed to simplify concrete production on job sites. It combines loading, weighing, mixing, transporting, and unloading functions into one compact unit, making it the perfect solution for modern construction projects.

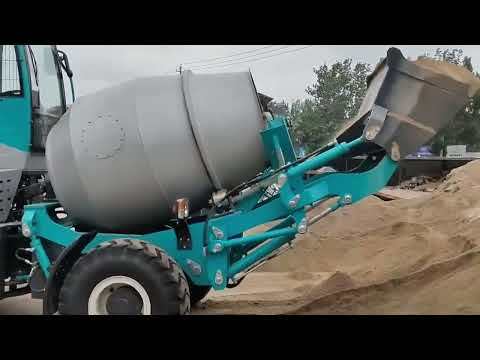

This self loading concrete mixer truck can automatically load sand, stone, cement, and water through its hydraulic loading bucket. With an advanced weighing system, the machine ensures accurate material proportions for consistent concrete quality. After loading, the rotating drum mixes the materials thoroughly and delivers fresh concrete directly to the construction area.

Compared with traditional batching plants and separate transport trucks, this mobile concrete mixer truck greatly reduces labor cost, equipment investment, and working time. Only one operator is needed to complete the entire process, helping contractors improve efficiency and profitability.

The machine is equipped with a powerful diesel engine, hydraulic steering system, and durable chassis structure, ensuring stable performance in harsh environments. Its 4x4 wheel drive system provides excellent off-road capability, making it ideal for rural roads, mountainous areas, farms, and remote construction sites.

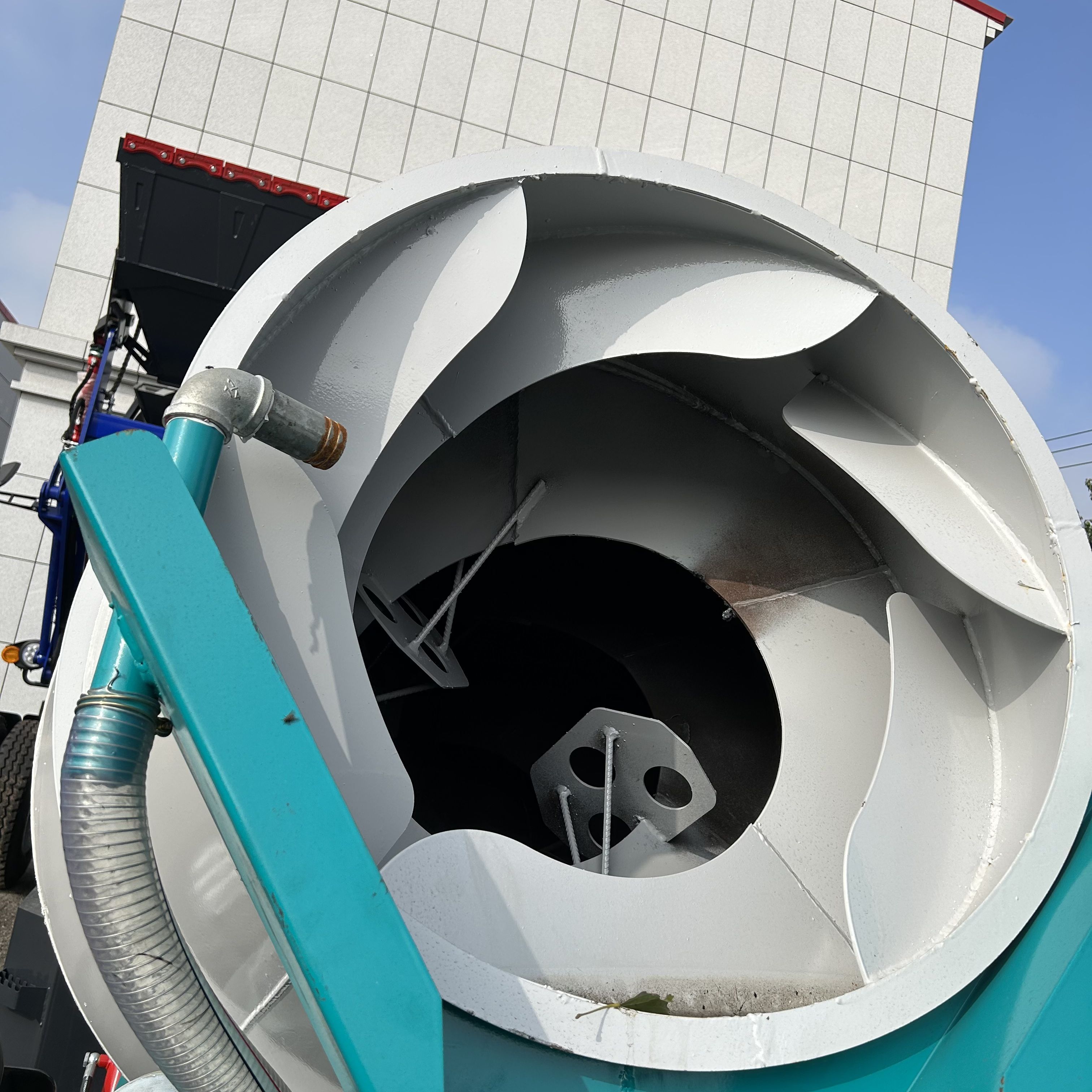

The 360-degree rotating drum allows flexible unloading in narrow spaces and complex job conditions. It is especially suitable for projects where ready-mix concrete delivery is difficult or expensive.

This construction mixer machine is widely used for house building, road repair, bridge construction, farm foundations, village infrastructure, and small to medium commercial projects.

Available in different capacities such as 1.5m³, 2.0m³, 2.5m³,3.0，m³, 3.5m³, 4.0m³ and 4.5m³, the self loading mixer truck can meet various customer requirements.

If you are looking for a cost-effective, flexible, and reliable concrete production solution, the self loading concrete mixer truck for sale is the best choice for your business.

Stats	units	parameter
Actual agitation	m³	1.5
Mixing tank capacity	m³	2.4
Angle of inclination	o	16.3
Rotational speed	r/min	20
Direction of rotation	Feed: clockwise Discharge: counterclockwise
Slump of concrete	mm	70-260
Hydraulic transmission system
Oil pump model		CB40/40
Motor type		BMS-315
Reducer speed ratio		1:10
Chassis engine main performance parameters
Engine type		YN27GBZ
displacement	L	3.0
Rated power	kw/r/min	58
Maximum torque	N.m/r/min	213-237/1800-2200
Maximum travel speed	km/h	24
Minimum turning radius	mm	3100
Climbing ability	％	26
tyre		23.5/70-16
Driving form	four-wheel drive
Maximum loading weight	kg	4200
wheelbase	mm	2400
Bucket capacity	m³	0.3
Water supply system	Automatic filling
Tank capacity/water supply form	L	500
Vehicle equipped weight	kg	4500
Overall dimensions (L x W x H)	mm	4550×1800×2700

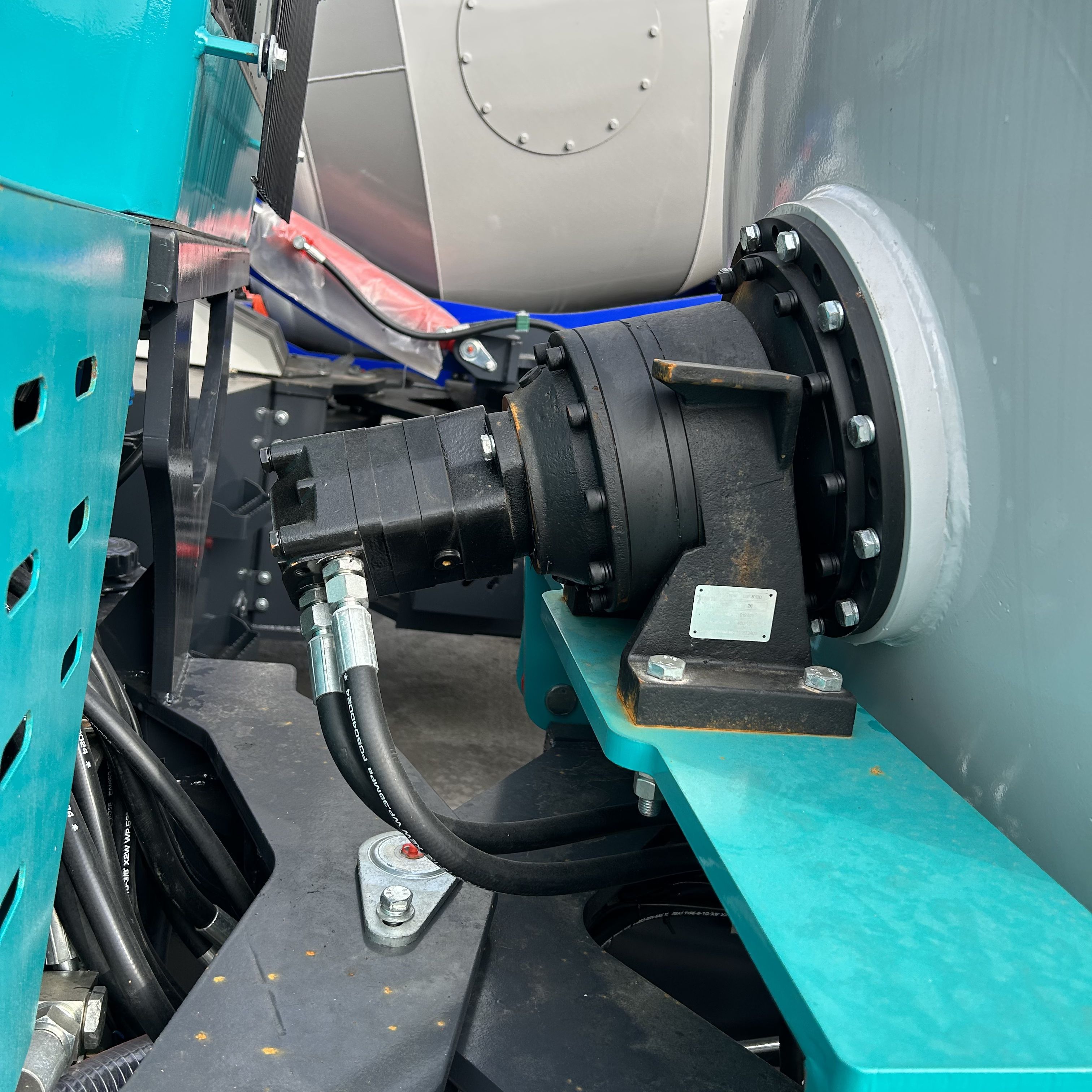

Dashcam footage ensures a clear, unobstructed view with no blind spots,	A simple and comfortable control panel for more efficient operation	High-torque hydraulic motor: Smooth, jam-free mixing even during prolonged operation	A high-performance hydraulic system ensures smooth operation of the machinery

Self Loading Concrete Mixer Truck | Mobile Concrete Mixing Machine for Construction Projects

Description

More informations

Ideal Applications for Self Loading Concrete Mixer Truck
